LED COB Directional Downlight with Center Frosted Glass

MAC-DDL-12-DL
MAC-DDL-12-APPLICATION
Description: LED Directional Downlight
Wattage: 12W
Lumens: 1200 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D108*H75mm
Cutout: D90mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Daylight 6500K
MAC-DDL-12-CW
MAC-DDL-12
Description: LED Directional Downlight
Wattage: 12W
Lumens: 1200 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D108*H75mm
Cutout: D90mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Coolwhite 4000K
MAC-DDL-12-WW
MAC-DDL-12
Description: LED Directional Downlight
Wattage: 12W
Lumens: 1200 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D108*H75mm
Cutout: D90mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Warmwhite 3000K
MAC-BDDL-12-DL
MAC-BDDL-12-APPLICATION
Description: LED Directional Downlight
Wattage: 12W
Lumens: 1200 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D138*H83mm
Cutout: D120mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Daylight 6500K
MAC-BDDL-12-CW
MAC-BDDL-12-GRAY
Description: LED Directional Downlight
Wattage: 12W
Lumens: 1200 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D138*H83mm
Cutout: D120mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Coolwhite 4000K
MAC-BDDL-12-WW
MAC-BDDL-12-GRAY
Description: LED Directional Downlight
Wattage: 12W
Lumens: 1200 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D138*H83mm
Cutout: D120mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Warmwhite 3000K
MAC-DDL-18-DL
MAC-DDL-18-APPLICATION
Description: LED Directional Downlight
Wattage: 18W
Lumens: 1800 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D138*H83mm
Cutout: D120mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Daylight 6500K
MAC-DDL-18-CW
MAC-DDL-18-GRAY
Description: LED Directional Downlight
Wattage: 18W
Lumens: 1800 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D138*H83mm
Cutout: D120mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Coolwhite 4000K
MAC-DDL-18-WW
MAC-DDL-18-GRAY
Description: LED Directional Downlight
Wattage: 18W
Lumens: 1800 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D138*H83mm
Cutout: D120mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Warmwhite 3000K

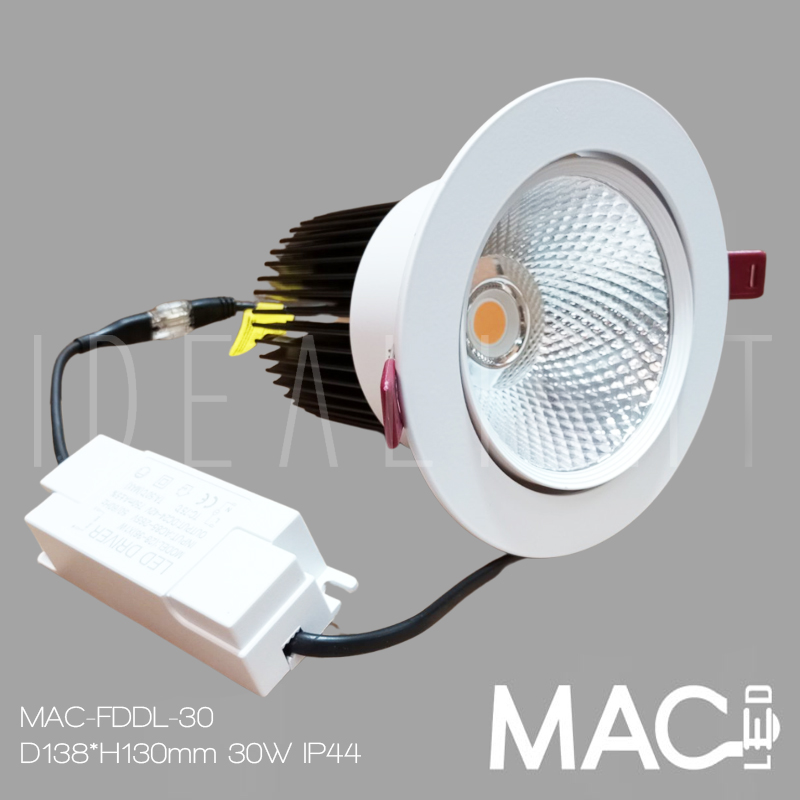

MAC-FDDL-30-DL
MAC-DDL-18-GRAY
Description: LED Directional Downlight
Wattage: 30W
Lumens: 3000 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D138*H83mm
Cutout: D120mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Daylight 6500K
MAC-FDDL-30-CW
MAC-DDL-18-GRAY
Description: LED Directional Downlight
Wattage: 30W
Lumens: 3000 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D138*H83mm
Cutout: D120mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Coolwhite 4000K
MAC-FDDL-30-WW
MAC-DDL-18-GRAY
Description: LED Directional Downlight
Wattage: 30W
Lumens: 3000 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D138*H83mm
Cutout: D120mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Warmwhite 3000K

LED COB Deep Directional Downlight

MAC-DDL-07-DL
MAC-DDL-07
Description: LED Directional Downlight
Wattage: 7W
Lumens: 700 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D85*H70mm
Cutout: D75mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Daylight 6500K
MAC-DDL-07-CW
MAC-DDL-07
Description: LED Directional Downlight
Wattage: 7W
Lumens: 700 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D85*H70mm
Cutout: D75mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Coolwhite 4000K
MAC-DDL-07-WW
MAC-DDL-07
Description: LED Directional Downlight
Wattage: 7W
Lumens: 700 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D85*H70mm
Cutout: D75mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Warmwhite 3000K
MAC-DDL-15-DL
MAC-DDL-15-APPLICATION
Description: LED Directional Downlight
Wattage: 15W
Lumens: 1500 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D100*H85mm
Cutout: D85mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Daylight 6500K
MAC-DDL-15-CW
MAC-DDL-15-GRAY
Description: LED Directional Downlight
Wattage: 15W
Lumens: 1500 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D100*H85mm
Cutout: D85mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Coolwhite 4000K
MAC-DDL-15-WW
MAC-DDL-15-GRAY
Description: LED Directional Downlight
Wattage: 15W
Lumens: 1500 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D100*H85mm
Cutout: D85mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Warmwhite 3000K
MAC-DDL-20-DL
MAC-DDL-20-APPLICATION
Description: LED Directional Downlight
Wattage: 20W
Lumens: 2000 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D140*H105mm
Cutout: D115mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Daylight 6500K
MAC-DDL-20-CW
MAC-DDL-20-GRAY
Description: LED Directional Downlight
Wattage: 20W
Lumens: 2000 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D140*H105mm
Cutout: D115mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Coolwhite 4000K
MAC-DDL-20-WW
MAC-DDL-20-GRAY
Description: LED Directional Downlight
Wattage: 20W
Lumens: 2000 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D140*H105mm
Cutout: D115mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Warmwhite 3000K
MAC-DDL-30-DL
MAC-DDL-30-APPLICATION
Description: LED Directional Downlight
Wattage: 30W
Lumens: 3000 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D175*H118mm
Cutout: D150mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Daylight 6500K
MAC-DDL-30-CW
MAC-DDL-30-GRAY
Description: LED Directional Downlight
Wattage: 30W
Lumens: 3000 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D175*H118mm
Cutout: D150mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Coolwhite 4000K
MAC-DDL-30-WW
MAC-DDL-30-GRAY
Description: LED Directional Downlight
Wattage: 30W
Lumens: 3000 lm
Input Voltage: AC85-265V
IP Rating: IP20 Indoor
Dimension: D175*H118mm
Cutout: D150mm
Beam Angle: 24deg
Material: Die-Cast Aluminum + Glass
Color Temp: Warmwhite 3000K
